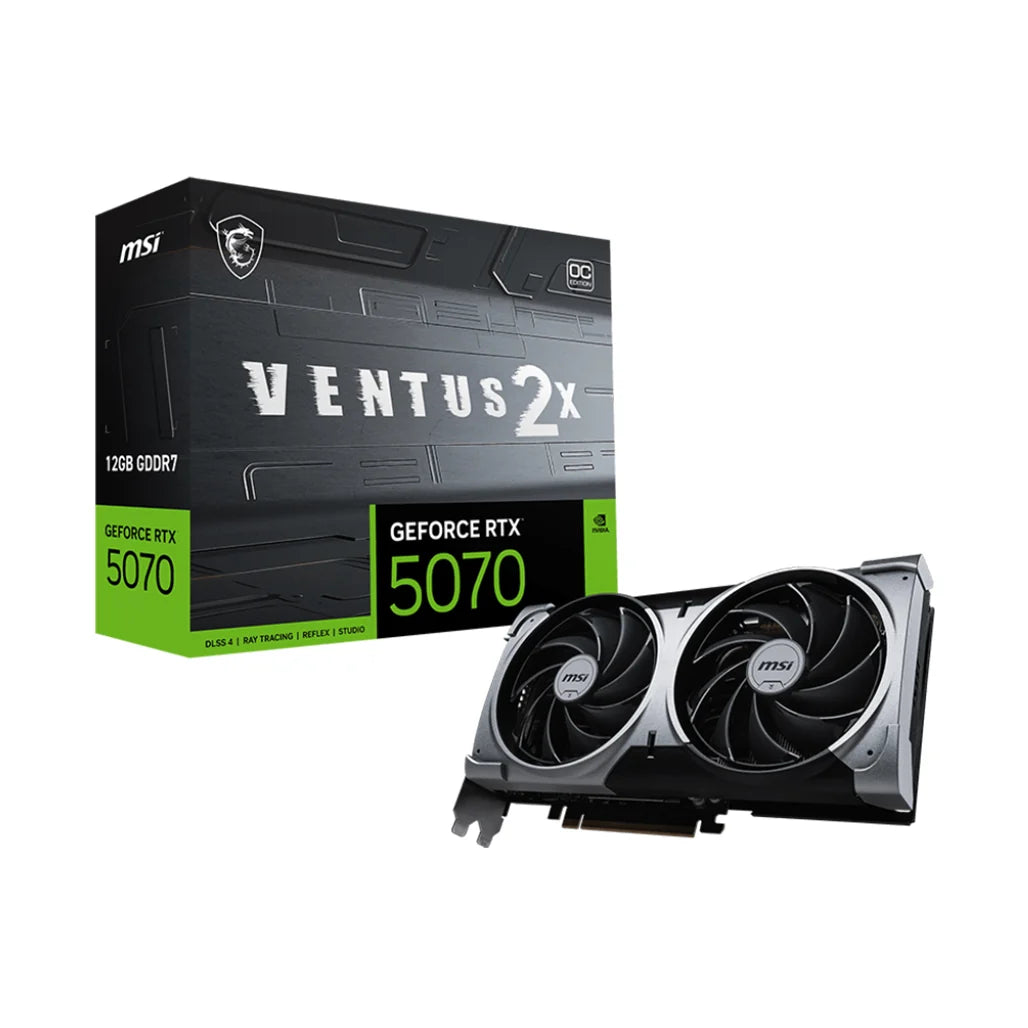

MSI GeForce RTX 5070 12G VENTUS 2X OC GDDR7 Graphics Card

Features Explained

NVIDIA Blackwell Architecture: Powers the latest graphics advancements including DLSS 4, FP4-optimized AI performance, and neural rendering technologies.

DLSS 4 with Multi Frame Generation: Leverages AI to generate additional frames, boosting frame rates while preserving image quality.

Fourth-Gen Ray Tracing Cores: Deliver real-time, full-scene ray tracing for true-to-life shadows, reflections, and lighting effects.

NVIDIA Reflex 2 with Frame Warp: Reduces system latency for competitive gaming, ensuring responsive controls and accurate timing.

NVIDIA Studio & ACE: Tools for creators and developers, supporting digital humans, AI assistants, and content creation workflows.

MSI Dual-Fan Thermal Design: TORX Fan 5.0 ensures high-pressure airflow with low noise; core pipes and thermal padding improve heat dissipation.

Durable Build Quality: Reinforced metal structure, added fuses for PCB protection, and a metal backplate increase card durability.

MSI Center & Afterburner: Real-time tweaking, AI tuning, and full overclocking control in a single software suite.

SFF-Ready: Compact dimensions ideal for small form factor builds, maintaining high performance in a reduced footprint.

Specifications

Product Name: MSI GeForce RTX™ 5070 12G VENTUS 2X OC

Model Number: G5070-12V2C

GPU: NVIDIA® GeForce RTX™ 5070

Interface: PCI Express® Gen 5

Core Clock Speeds:

Extreme Performance: 2557 MHz (via MSI Center)

Boost Clock: 2542 MHz

CUDA® Cores: 6144

Memory Speed: 28 Gbps

Memory Capacity: 12GB GDDR7

Memory Bus Width: 192-bit

Display Outputs:

3 x DisplayPort (v2.1b)

1 x HDMI™ (2.1b, supports up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)

HDCP Support: Yes

Power Consumption: 250W

Power Connector: 1 x 16-pin (ATX 3.1 PSU recommended)

Recommended Power Supply: 650W

Card Dimensions: 236 x 126 x 50 mm
